Here’s a tale that warms our hearts. [Gord] is helping out the local living-history museum by rehabbing a historic woodworking tool that they want to add to their live demo woodshop. It’s a hundred-year-old manual drill press that has seen a ton of use.
There are three things that [Gord] has going for him. First off, the Champion Blower and Forge Co. built them to last. Second, he’s not really working on a deadline; the museum doesn’t need it back until May. And third, [Gord] has the tools he needs to do this right.
After cleaning and blasting [Gord] gets down to the really interesting repairs. First off, it wouldn’t be a drill press if someone hadn’t tried to drill through the table at some point. TIG welding filled it up and some milling brought it back. This same method was used again to make a beautiful custom replacement ACME rod. Throwing in a custom bushing replacement, turned wooden handle, and a several other fabricated parts, and [Gord] had the press working again. Check out the mechanism in the video below that shows the crank action turns the bit and a cam advances it through the work piece.
We’ve seen additive use of TIG welding before in the form of a 3D printing concept. So far, those parts have nothing on what [Gord] achieved here.
Some would say ‘not a hack’, but you didn’t go out and buy new parts or pay a fabricator to do this for you.
Props for working with what you have on hand and taking the time to do it properly.
One of these days I’d love to pay Gord a visit and hang out for a day or 2.
the auto feed is cool, it would be nice if they had different cams so the feed per revolution could be changed to handle hard and soft materials.
Them old timers thought of everything. The black knurled knob above the roller that follows the cam serves to limit the stroke.
My family has one of these, They were mostly sold to professional blacksmiths, not woodworkers. For drilling in mild steel, these things can’t be beat. The speed is low enough that you don’t have to worry about damaging the drill bit due to burning through the material. The advance is well controlled, allowing it to work with other materials that might pull the drill forward in an uncontrolled fashion.
It wasn’t until I saw this mounted in the right orientation that I figured out many of the features. Controlling the feed rate is built into the advance arm. There’s a thumbscrew that allows the dog on the end of the arm to catch one, two, or three teeth per revolution depending on the setting. The thumbscrew changes how much the arm follows the cam on the main crank.
Finally, I couldn’t see it in the video, but some of these have two speeds. To get a different speed, you remove the handle from the machine and mount it on a different spindle, which makes it go slower with more torque. That feature was on those units which could handle drilling large holes, 3/4 to 1 1/2 inches in size.
Excellent job on the restoration, [Gord]! I love old machinery, and love seeing it brought back to life and put on display for people to enjoy. There’s a certain magic to the machinery from that era.
Again, very well done. (I wouldn’t mind a longer video, though)
Beautiful work. Even the “period incorrect” parts are so well machined that one can hardly fault them. It just goes to strengthen my belief that gear that was well made to begin with can be maintained as long as someone cares enough to do so.
Nice, I have one of these and it’s on the list of rebuild projects. Mine was converted to run with a motorised belt drive from a shaft in a workshop powered by an old Model T ford parked out the back.
I have seen/done things just like that so many times.
This is cool! Amazing what we take for granted these days we just press a button and get 2,000 rpm on a cordless drill. This is an industrial hand crank drill must have been shitty running that round all day every day. Amazing machine all the same. I hope the museum allow kids to drill stuff with this and don’t have it as a stationary piece.
They should if they want to be period authentic.
I have an electrified post drill in the shop 8-9 years ago I had to stand in silence when 2 post drills with vey little wear when the yard of a metal salvager I guess time moves on an room has to be made the younger generation’s stuff. These old tools out lived their usefulness, and really no need to save each and every survivor, no matter how good of shape they are in a family can and keep them for decades and not find anyone interested in them. In the event I had control over the fate of those two units I would have gladly traded them for a quality imported modern bench top drill press, but I would have had a hard time finding anyone locally willing to pay that much
I lost a lot of tools over the years. Either through poor choices or not realizing what they were until it was too late. This was before the internet.
Part of the problem with old tools is practicality plays a very strong role in its value. An antique “widow maker” chain saw will have almost no takers as opposed to your safe-for-stupid-people chain saw that will be sold before the tag is written.
For a job like that cleaning and blasting is a last resort. You can do so much more with a soda bath and a battery charger or preferably a controlled DC source.
Blasting removes material, electrolysis will convert some of it back to iron and it should always be the first step for rusty machine tools.

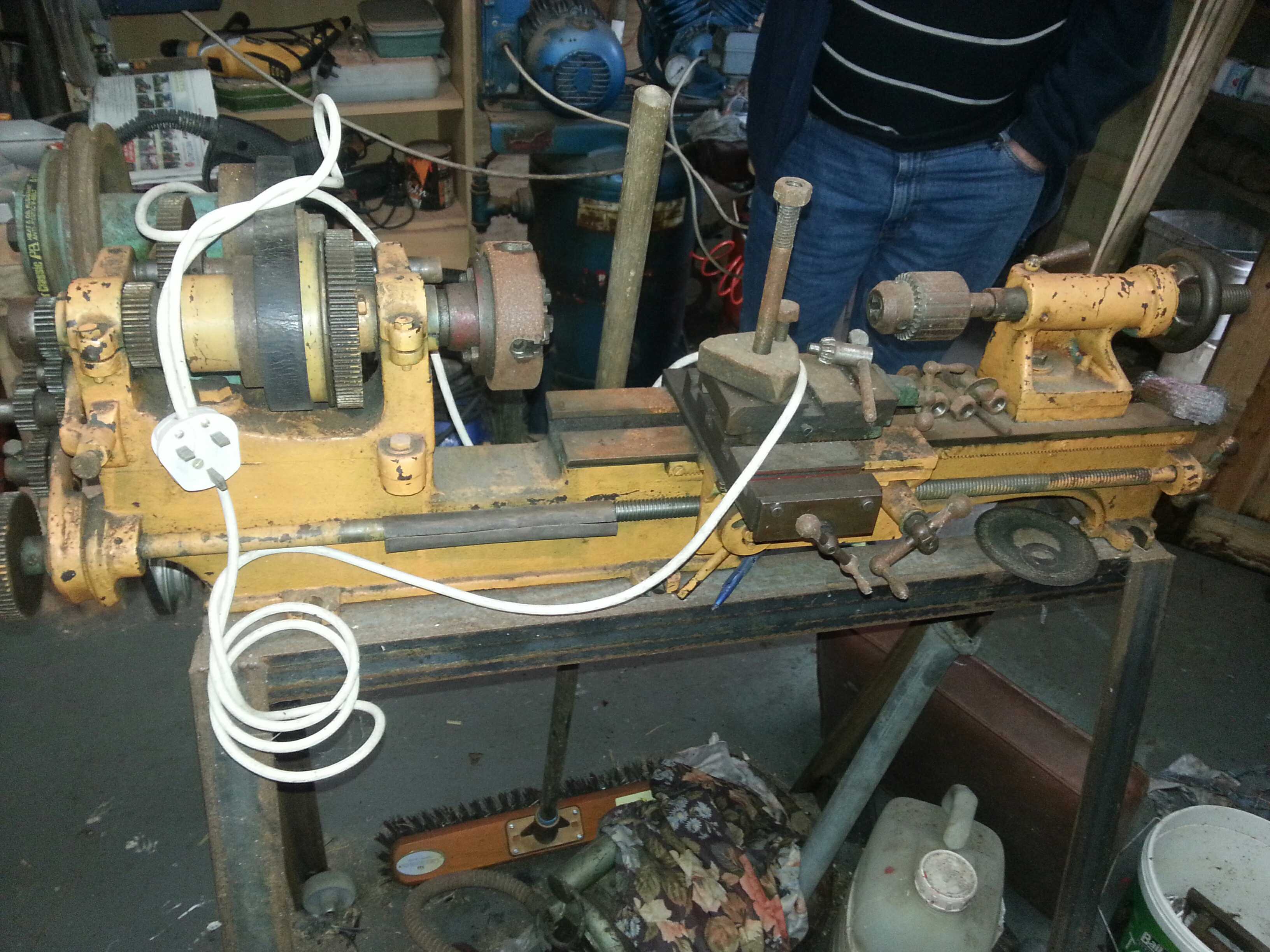

Before
