Sometimes the simplest objects need some overthinking. This is exactly what [Chris Borge] realized when using his 3D scanner and finding that the included rotation table left quite a bit to be desired — providing him the perfect excuse to build a new one.
One of the main features of a rotation stage is the, well, rotation. This was done in [Chris]’s case with a NEMA 17 stepper motor, perfect for precise rotation of scanning. Hooking up the motor to a basic perf board with an Arduino Nano allows for on the fly adjustments to rotation speed. To really solidify the over-engineering, [Chris] applies his obligatory concrete mix to add some heft to the stage.

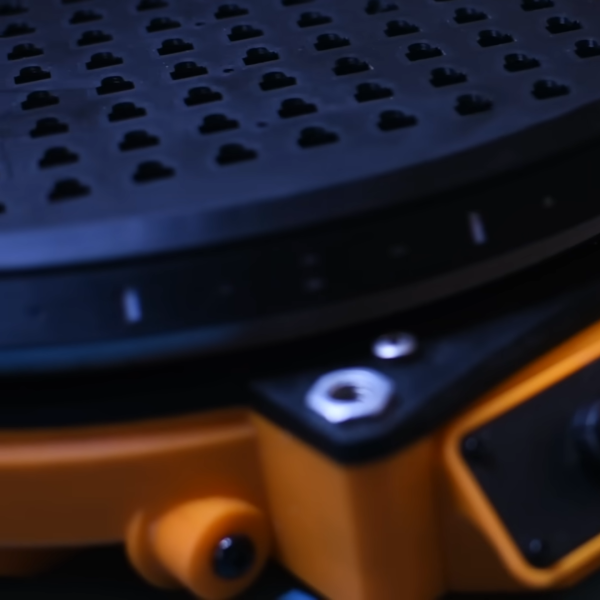

While the previous features could be removed/downgraded without much loss, the adjustable grid built into the top adds significant functionality. The grid is based on [Chris]’s past projects, which allows cross compatibility.
We love over-engineering here at Hackaday, especially when adding something new. For more prime overthought design, check out this over engineered egg cracker!
Cool project. The thing that amazes me the most is that here on hackaday people tend to make the most beautifull things, but many just don’t seem to grasp the concept using both nuts ans spacers as supplied with the used tumble switches. Resulting in a beautiful build but with tumbler switches sticking out like a sore thumb because the builder failed (or just didn’t care) to mount the switch flush into the frontpanel.
How would you mount the switches?
You put a nut and washer on the switch, leaving just enough thread for the panel and another washer nut (plus optional washer, plate whatever). Push switch thru panel, put second nut on. Adjust rear nut if needed to set switch height.

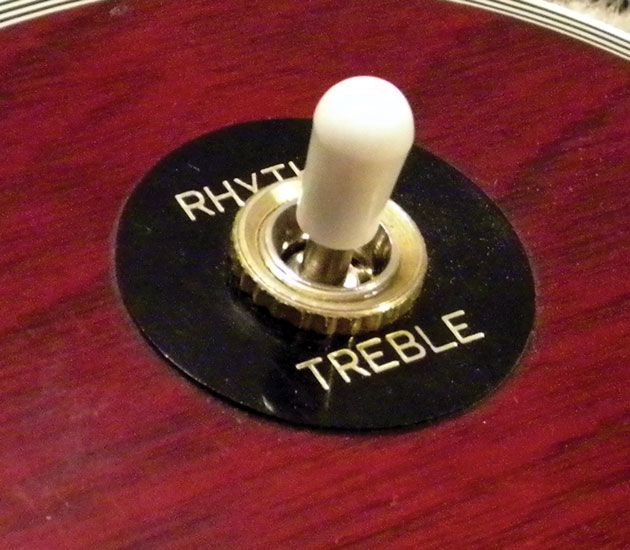

It should look like this: https://www.premierguitar.com/media-library/photo-1.jpg?id=25745645
