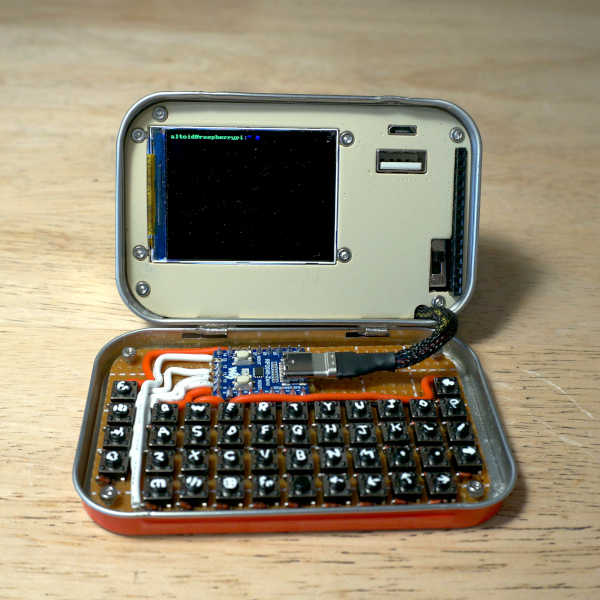

In the time Hackaday has been in existence we must have brought you plenty of projects housed in Altoids tins, as well as a sizeable number of cyberdecks. But until today with [Exercising Ingenuity]’s build, we’ve never brought you a project that combines the two. It’s a fully functional computer that runs Linux, and with its Altoids tin enclosure, looks for all the world like a miniature clamshell laptop.
Hardware wise it’s a Pi Zero with a UPS PHAT and an SPI display, but perhaps it’s arguably the home-made keyboard that really sets it apart. There’s a full-size USB port as well, and a selection of GPIOs are broken out to a header. It wasn’t all plain sailing though, the Altoids hinges needed modifying to make it close, and he driver for the SPI screen required an older version of Raspberry Pi OS. We will forgive it those foibles.
It’s fair to say we’ve not seen anything quite like this, in that there have been plenty of tiny laptops but never one as integrated as this. There’s a demo video with details of the build, that we’ve placed below.
An altoids tin?
I think you mean “case designed for homebrew mp3 players back when buying one cost an arm, leg and your first-born that coincidentally was filled with mints”.
really? my impression is that it’s been easy to build a small homebrew mp3 player for just about as long as the product category has been absurdly inexpensive. back when they were expensive, the individual components to build one were just as expensive and a lot less convenient to hack on. are we remembering different timelines?
Don’t look now, but Guy Fawkes just hacked Prince Albert in his can.
I bought a solder-it-up 8051-based MP3 player from pjrc.com back in the late 90’s that could take a 2 gig IDE hard drive for storage, when competing commercial players were limited to 16/32 megabytes. Similar price, though, in the $150USD range.
yeah that sounds about right…though 8051, even for the time…yikes! but you won’t fit a 1990s IDE HDD in an altoids tin. by the time cheap storage would fit in an altoids tin, i thought mp3 players were basically two bucks more than the cost of the flash they contained.
I remember that system. It was very cleverly designed. Yes, it had an 87C52 that handled basic logic, control and i/o, but all the heavy lifting was done by a xilinx fpga, which loaded the mp3s from the hard drive into external RAM, streamed that to a specialized mp3 decoder chip, and of course that finally fed a DAC.
Of course, now you can get a general purpose ARM/Xtensa/RISC-V microcontroller that is powerful enough to do all of that on its own in software.
Was an 8051-based microcontroller really that “yikes” for the time, though? It was a comparatively ancient architecture, sure, but so was PIC, and don’t remember there being a whole lot of other options for affordable microcontrollers back when this came out (there was the Basic STAMP I guess). Atmel’s AVR was brand new and just getting started.
mmm…so impressive…ripe for the picking of some company to…well nuff said
No company would ever touch a cli linux computer if they expected to make a profit. Who would buy it? The Venn diagram of who would use it and who could build it at home is a single circle.
I would buy it. Well after a revision or two I would.
Cool. The next project is a computer in Altoids Mini Tin
raspberry pi in this form is always a failure because it’s fundamentally not a portable board. The pi zero has pretty low power consumption for an always-on linux box but fundamentally it doesn’t have any power save modes and that’s really the whole story.
but wait! there’s more: “and the driver for the SPI screen required an older version of Raspberry Pi OS.”
without knowing the details of this struggle, i’m just going to observe that this is a common struggle with raspberry pi. It’s not really open source and so to get drivers to work you have to target a specific version of the upstream firmware, which then before you know it that becomes a back version. Yuck. So many consequences of the low quality, low stability, and closed-ness of the underlying firmware.
Somewhat ironically, the problem with the official waveshare spi display drivers – and many others – is that the PI has moved away from a display driver that handles everything by calling the VideoCore firmware/binary blob. The new setup is an open KMS rendering stack where everything is handled in kernel space, so the old proprietary drivers (based on Videocore’s DispManX library) no longer work.
There are actually quite good open SPI display drivers for the new stack that work with many, if not all, of these displays, but they’re not configured or tested specifically for the waveshare implementations so they can be much harder to set up initially.. and the touchscreen aspect of the display is a separate driver to worry about, etc, etc.
(and of course the underlying pi firmware is still proprietary, it’s just the
[…] rendering stack that’s now open)
yeah that’s actually the same problem i had that soured me on raspberry pi. after a considerable effort, i interfaced with the “vchiq” (videocore proprietary firmware) HDMI CEC driver, and got it set up ‘just so’. And then literally a week later, they released a new firmware that used the standard linux CEC driver instead. Which is clearly better, but means i would have to redo a significant fraction of my work, and still (i’m confident, or afraid) have to spend some time working around new bugs in pi.
moving to a standardized interface is good but if it’s preceded by years with a proprietary interface, you’re making a headache for everyone that bothered to do the work to make the proprietary work.
For my next trick, I’ll put a server farm in a cement truck drum…
For a proto modules build, that’s pretty good. Maybe a Nokia keyboard and a thumb stick as mouse.
